Underwater Measurement Robot
ROVINS V3
Youngpoong's unique underwater exploration and inspection robot
Products ＿＿

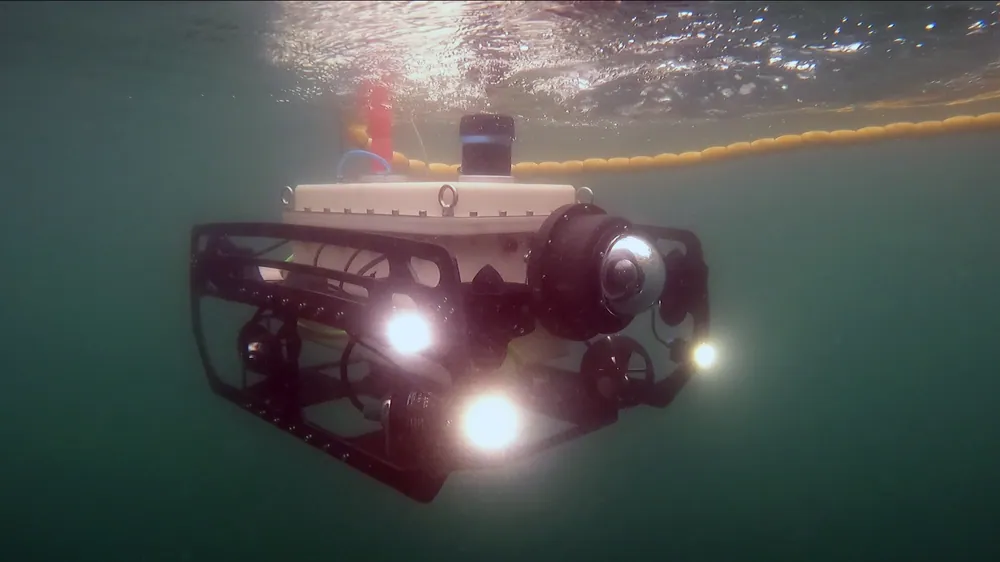

Underwater Measurement RobotROVINS V3
Youngpoong's unique underwater exploration and inspection robot

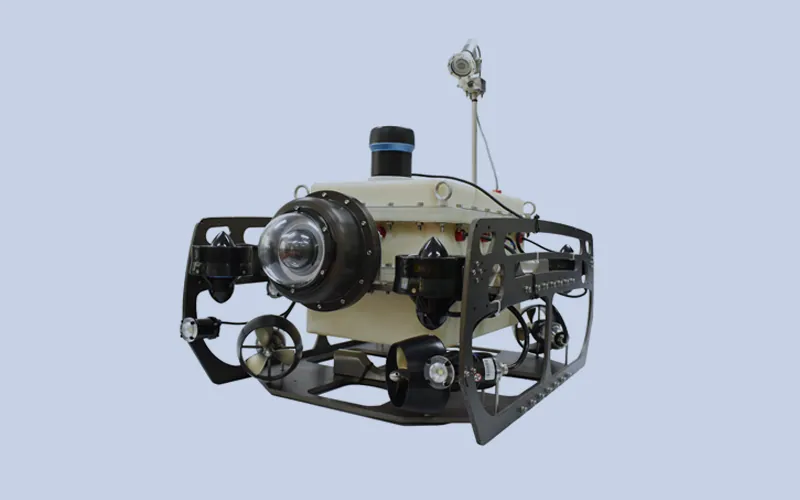

Underwater robot for suction tasks(Light Workclass)

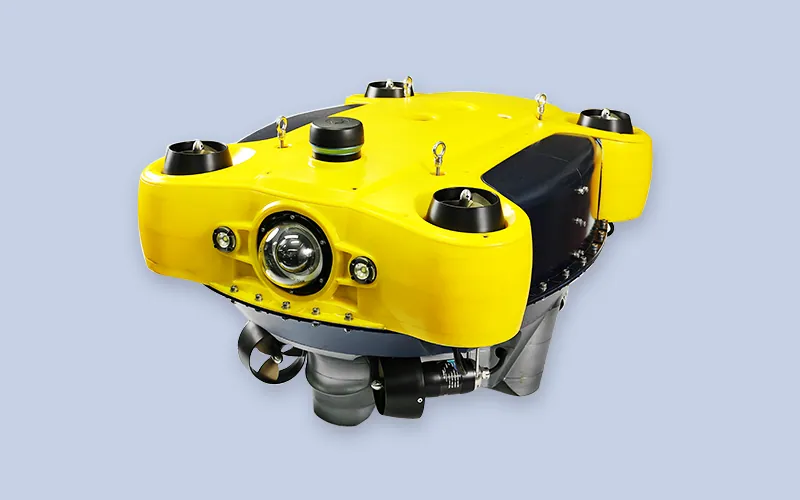

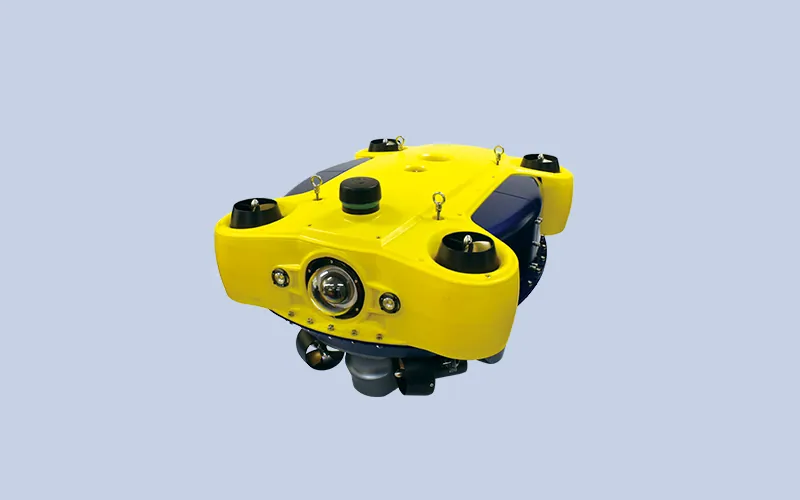

ROVINS-V3
Robots that clean underwater debris and trash via suction hoses
• Cleans underwater floats and waste through a suction hose mounted on the device
• Maintains the seafloor altitude and prevents collisions using 360-degree ultrasonic sensors List
ROVINS = ROV(Remotely Operated Vehicle) + INSPECTION
Features
Underwater Ultrasonic
Collision Avoidance Sensor
Maintains the seafloor altitude and prevents collisions using 360-degree ultrasonic sensors
Suction Hose
A robot cleaning underwater floats and wastethrough a suction hose mounted on the device
Front Camera
Front-loaded camera ensures driving safety
Constant power supply
No time limit for inspection/Power supply module installed for continuous inspection
Front LED
Capable of functioning in low-light environments
Underwater location recognition
Underwater positioning program using DVL sensors
Control System
ROVINS is an operations and control system
for underwater robots.
- Control and inspection software exclusively for underwater robots
- Obstacle collision prevention system
- Underwater positioning program using DVL sensors
- Power supply module installed for continuous inspection
- NVR(Network Video Recorder)

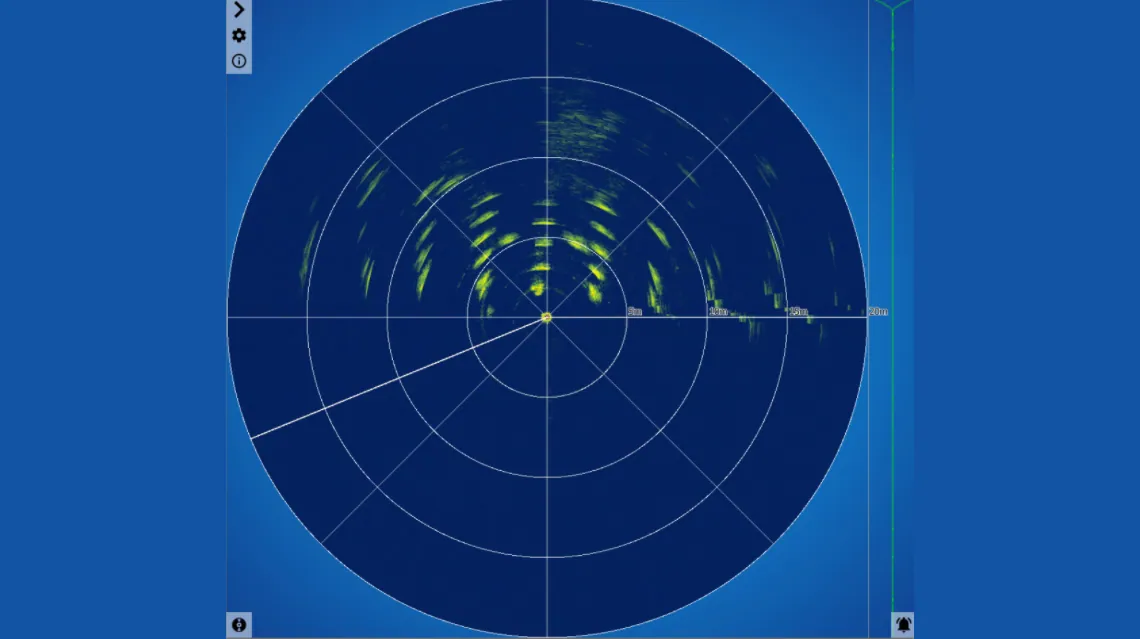

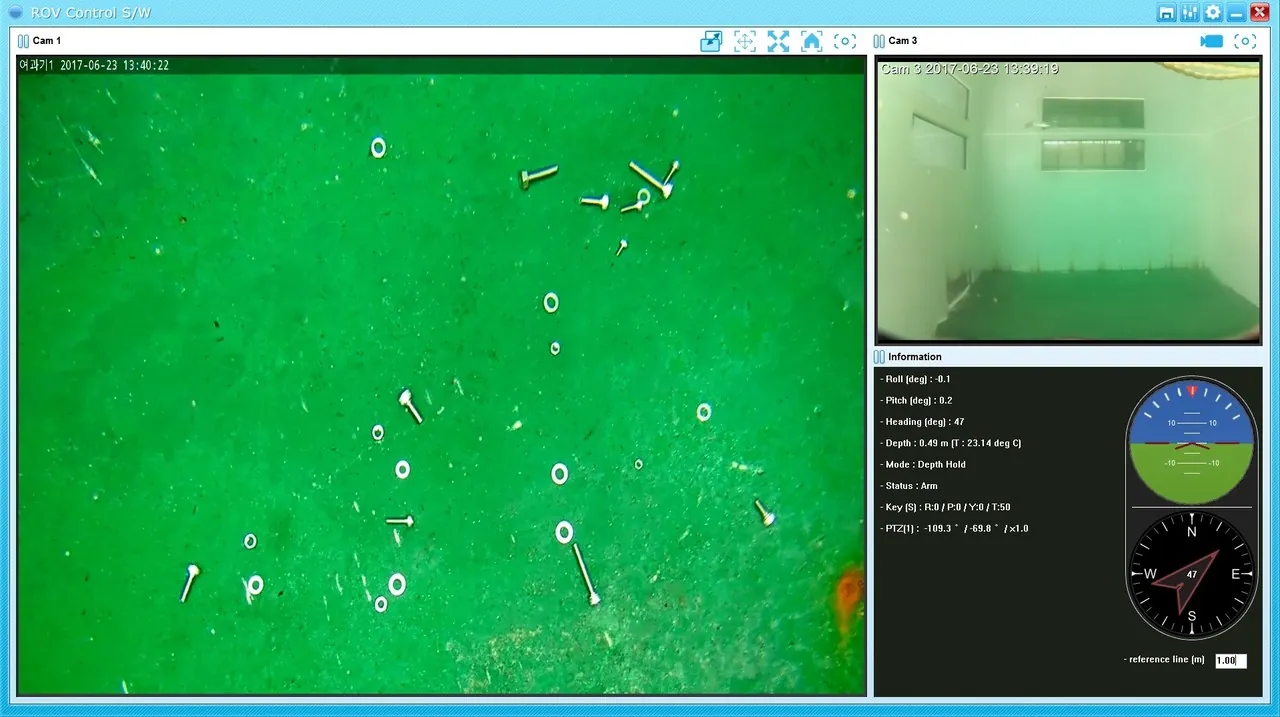

Program Capture

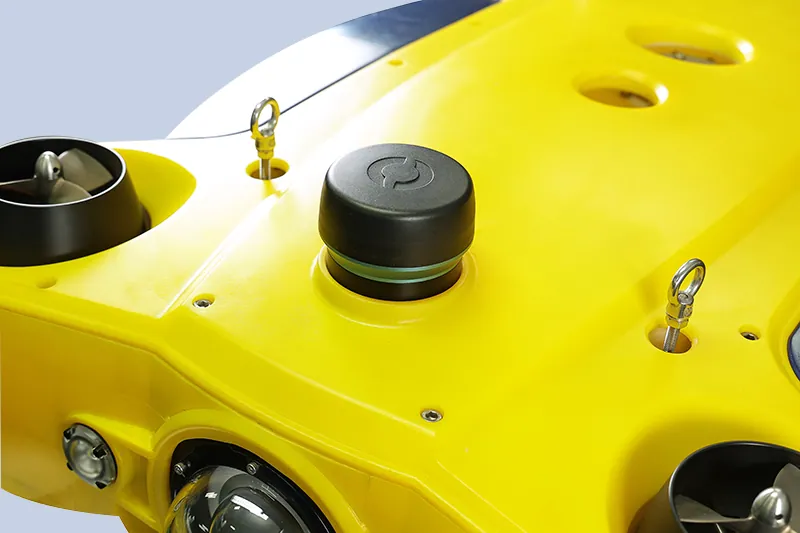

01 360-degree ultrasonic sensor to prevent underwater collisions
- Frequency : 750 kHz
- Range : 0.75~50m

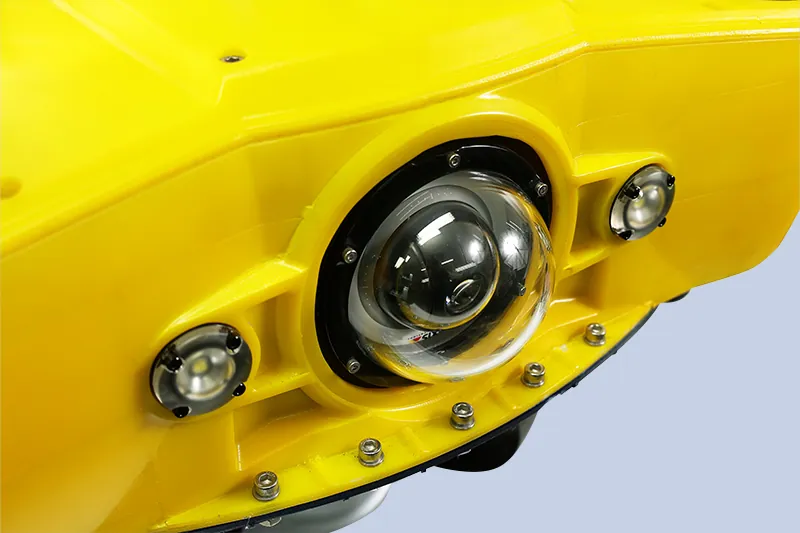

02 Backup Camera
- Mounted LiDAR for SLAM with airframe positioning
- Front camera to ensure driving safety
- Front LED to cope with low light environment

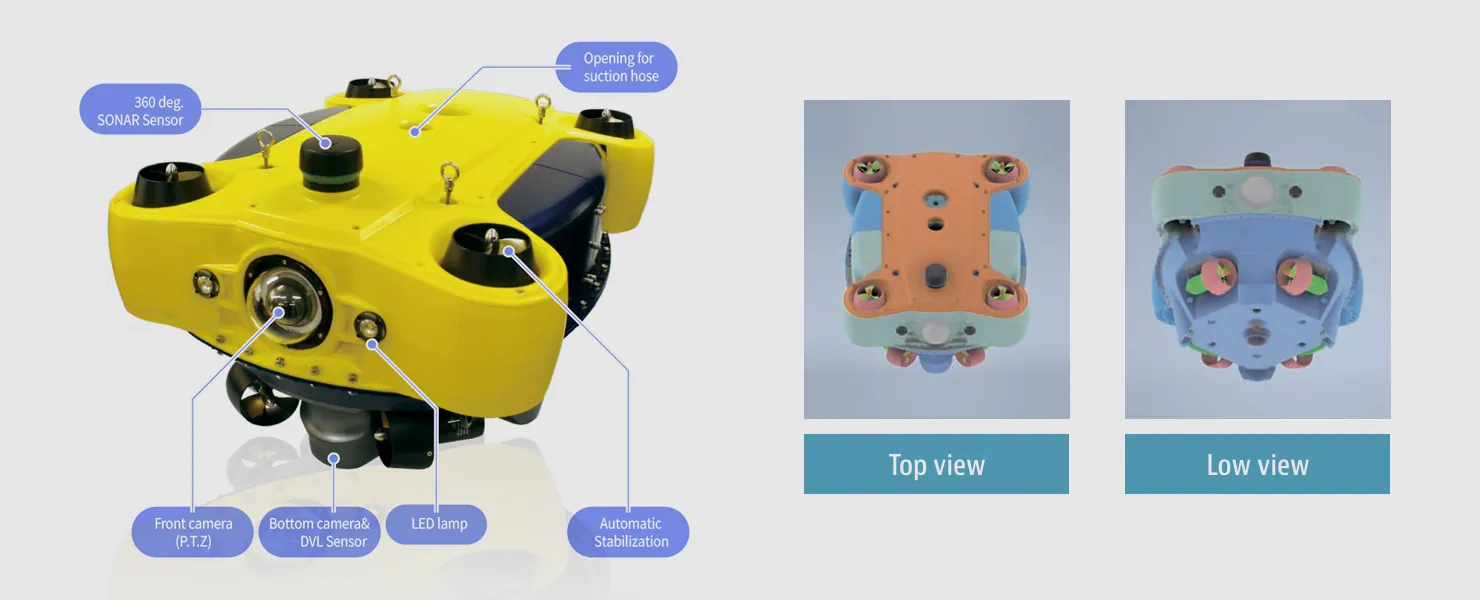

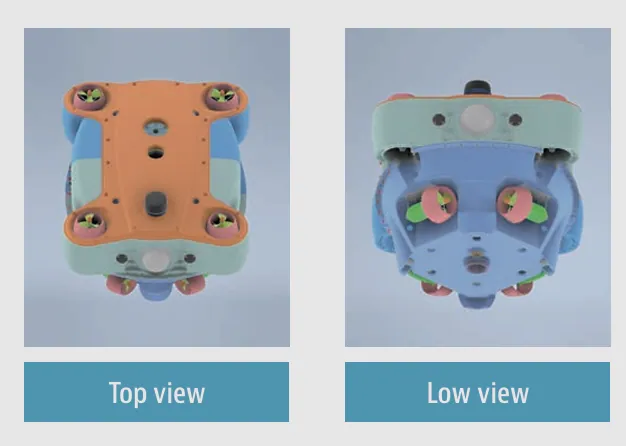

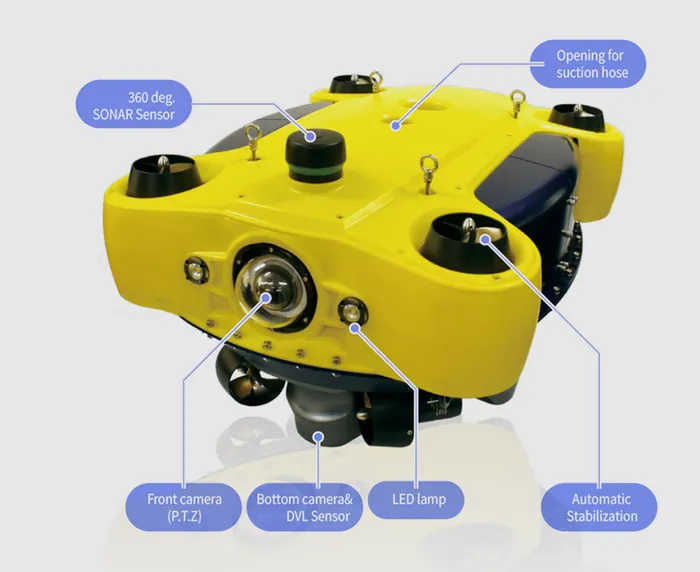

Configuration
Specification
| Diameter | Height | Weight in Air | Maximum speed | Thrust |
|---|---|---|---|---|
| 600 x 800mm | 500mm | 53kg | 1.8Knot | 4.6kgf |

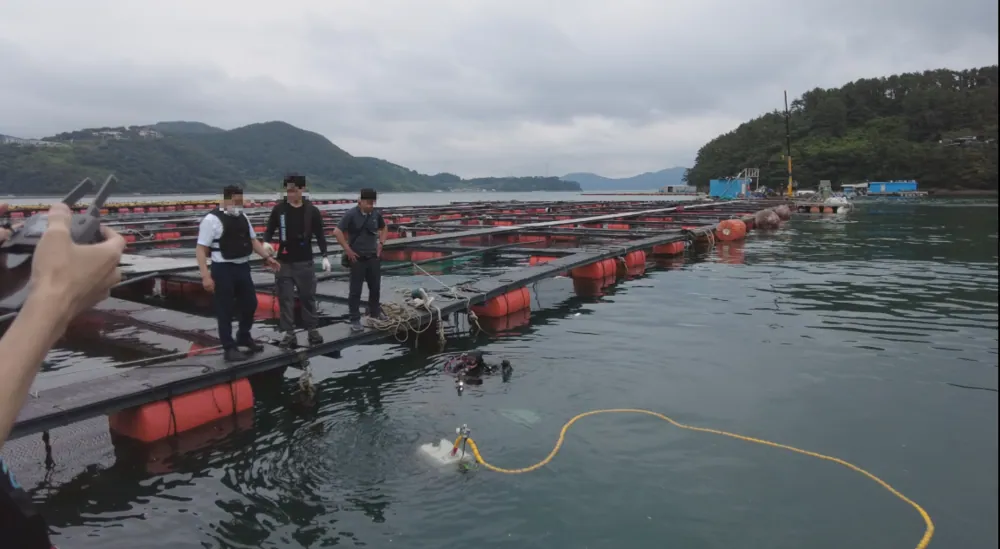

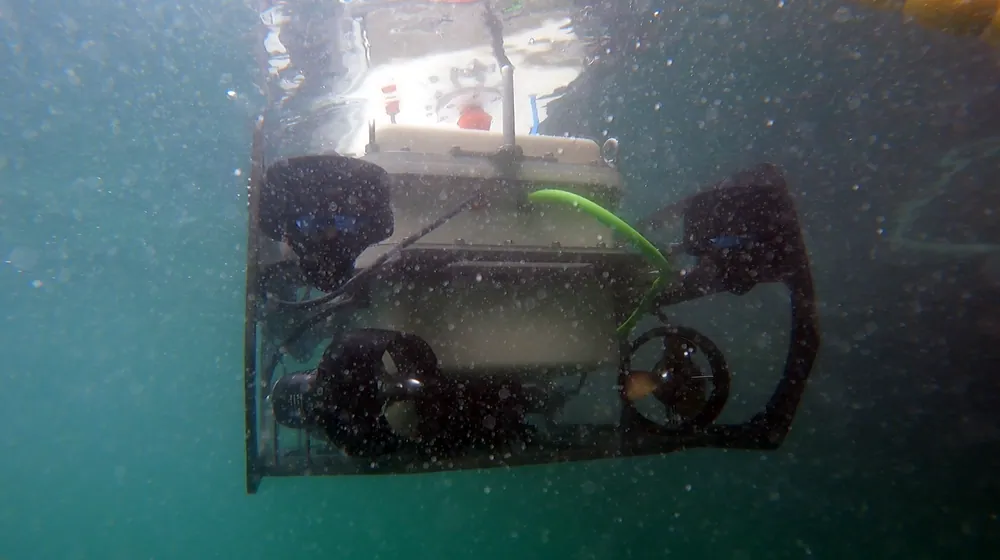

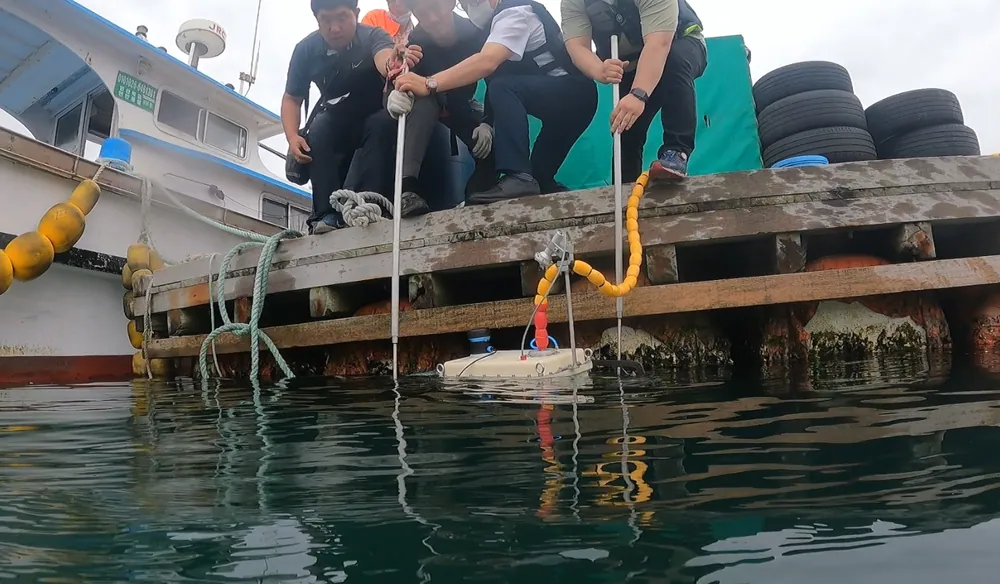

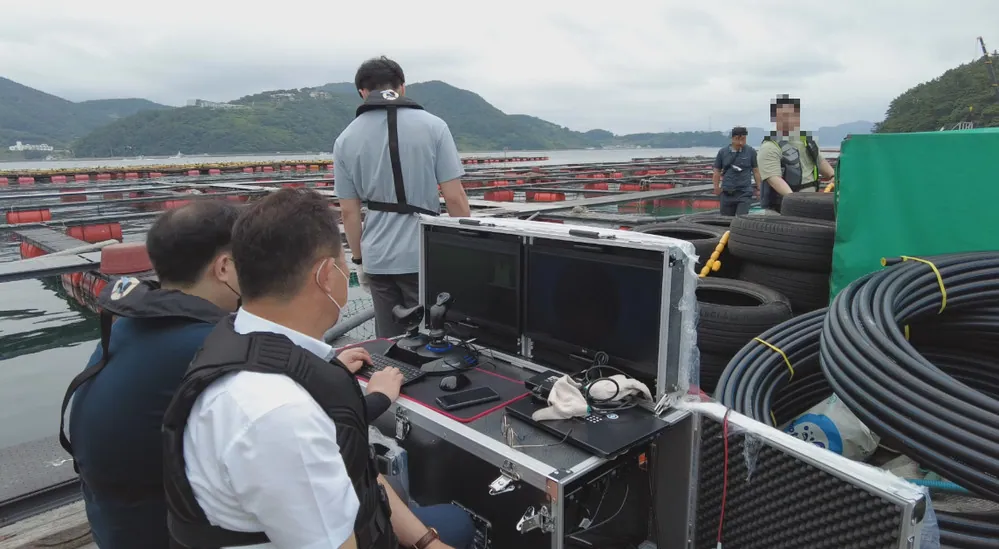

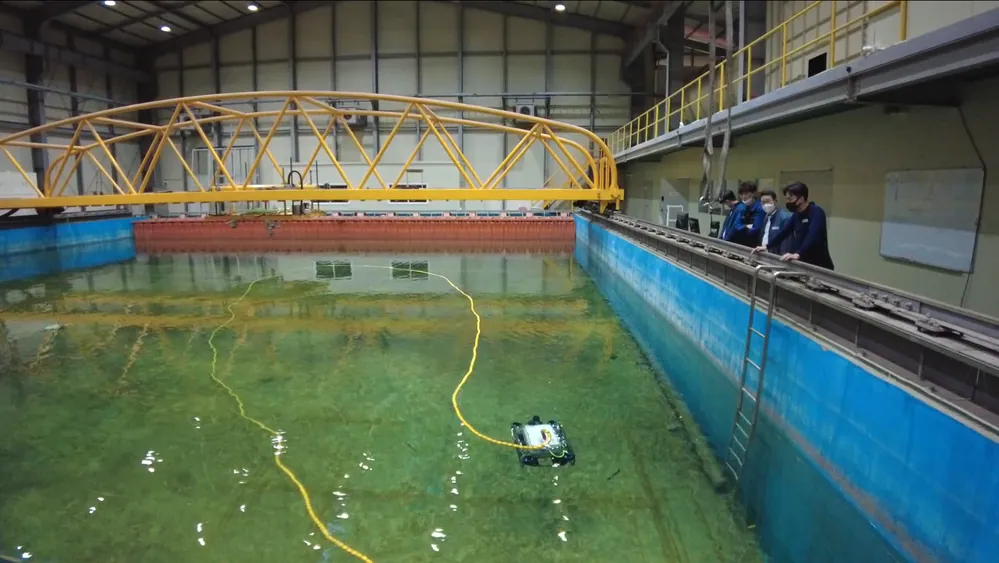

Case of Use
